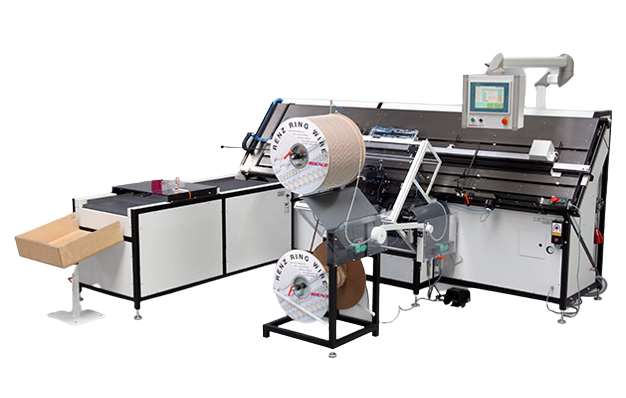

    RENZ ABL 500

    Brand: Renz
    Automatic ring wire binding machine - Made in Germany
    Code: RW01070028
    Mechanical cycles per hour 2,100
    Pitch 3:1, 2:1
    Binding thickness 15 mm
    Binding element O 5,5 - 19 mm
    3/16“ - 3/4“
    Min. binding width 70 mm
    Max. binding width 500 mm
    Min. unbound edge 135 mm (1)
    Max. unbound edge 700 mm (1)
    Binding operation Automatic
    Time required for diameter change 20 min
    Format change without diameter 3 min
    Calendar hangers Optional
    Machine dimensions L x W x H 3,300 x 2,300 x 1,600 mm (3)
    Machine weight 1,300 kg (2)
    Machine packing dimensions L x W x H Dependent on the configuration
    Machine weight with packing Dependent on the configuration
    Compressed air 7.5 bar / 450 l/min
    Power requirement 3/N/PE~400/230V 50Hz / 3.5kW
    3/PE~200/115V 60Hz / 3.5kW

    Optional extra:
    Job memory, storage of up to 50 jobs
    KAS calendar hanger systems
    Integrated cover page lifting device

    Industrial, high-speed, fully-automatic production RENZ RING WIRE® binding line for books, calendars and skip binding.
    For all types of ring wire, skip binding & calendars
    Simple & fast automatic on-screen machine setup
    Touch screen assisted set-up process
    Easy product loading
    *
    *
    *
    Products specifications
    Working width500 mm
    BrandRenz
